Perry finished the cabin kitchen cabinets. They are
custom designed and the framing and door material is solid knotty alter.
The cabinet carcass was built with 3/4" two-sided white melamine.
Recessed adjustable shelf brackets holds T-molded melamine for shelving.

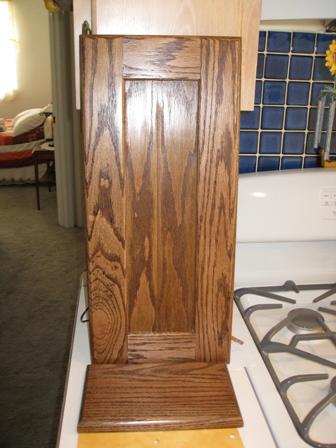

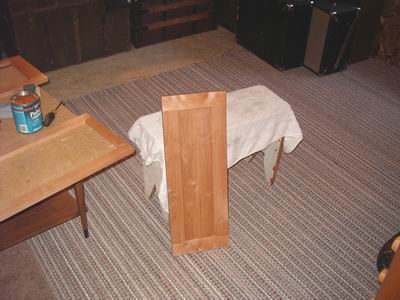

The cabinet doors are solid 3/4" x 2" frames with 1/4" solid alter inserts
hidden euphoria hinges. The doors are accented by small horse-shoe nails
face corner pins. The handles and knobs of hammered antique iron.

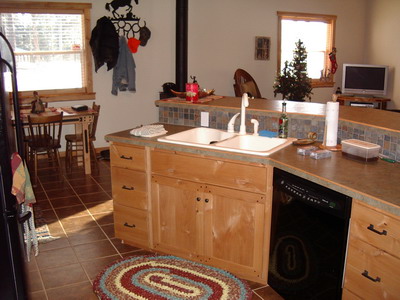

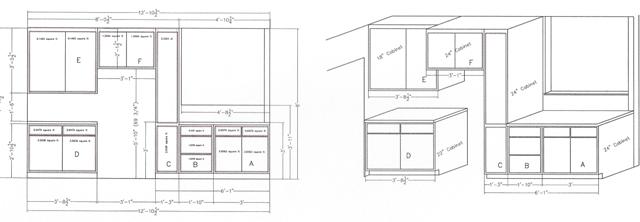

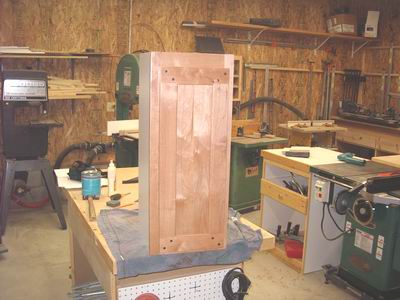

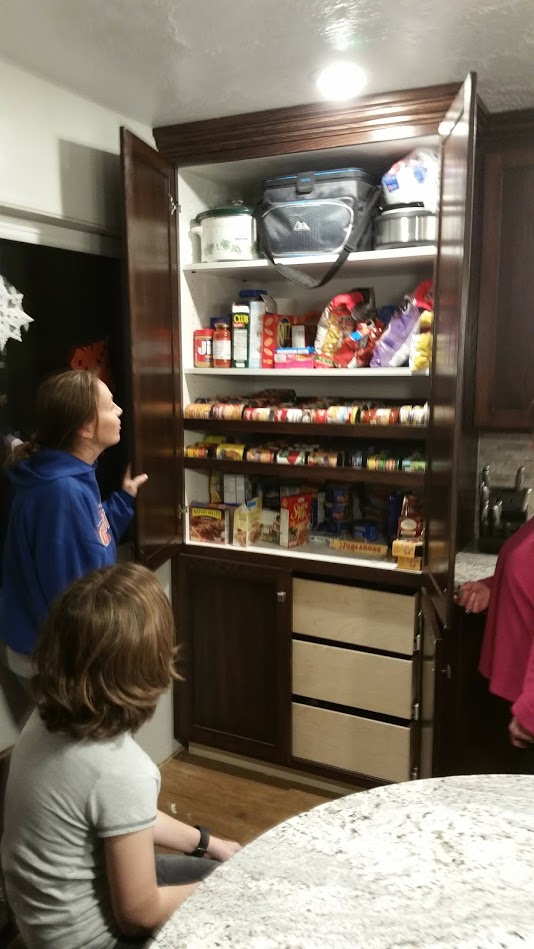

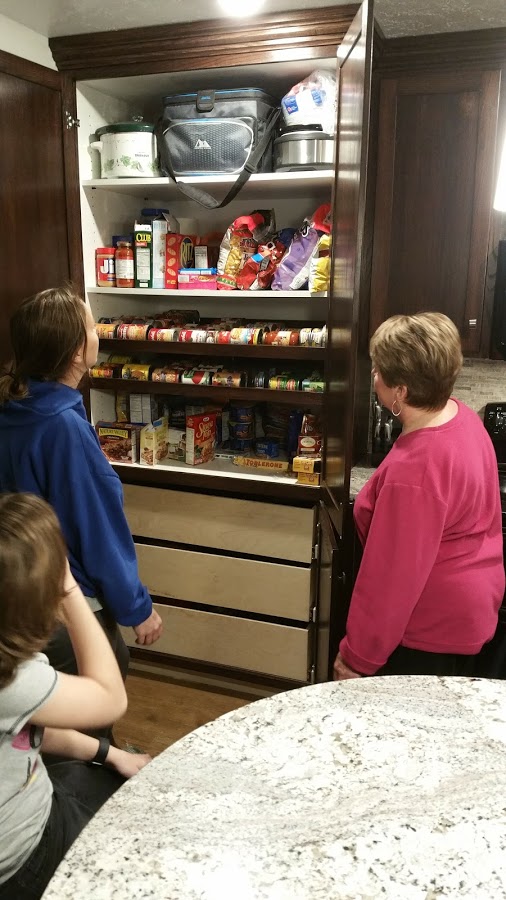

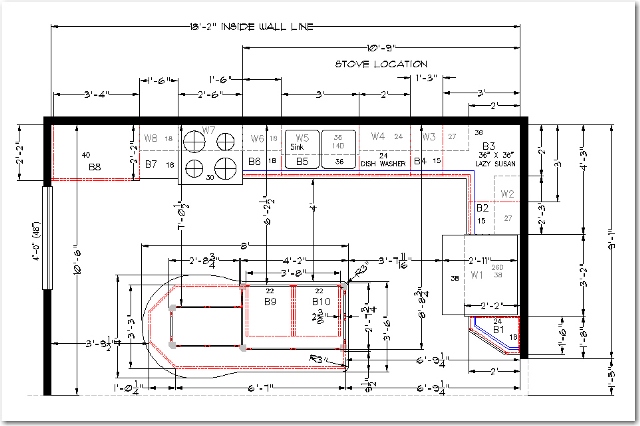

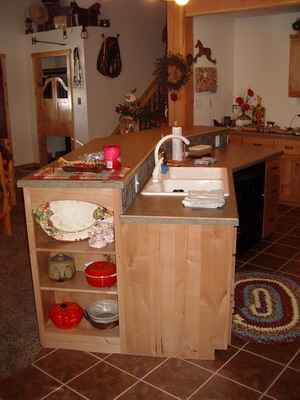

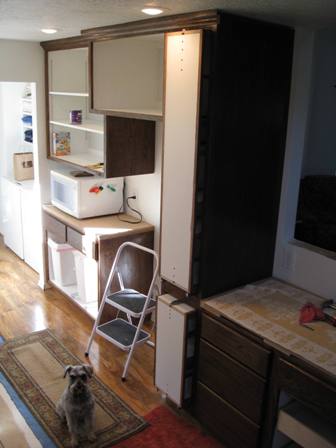

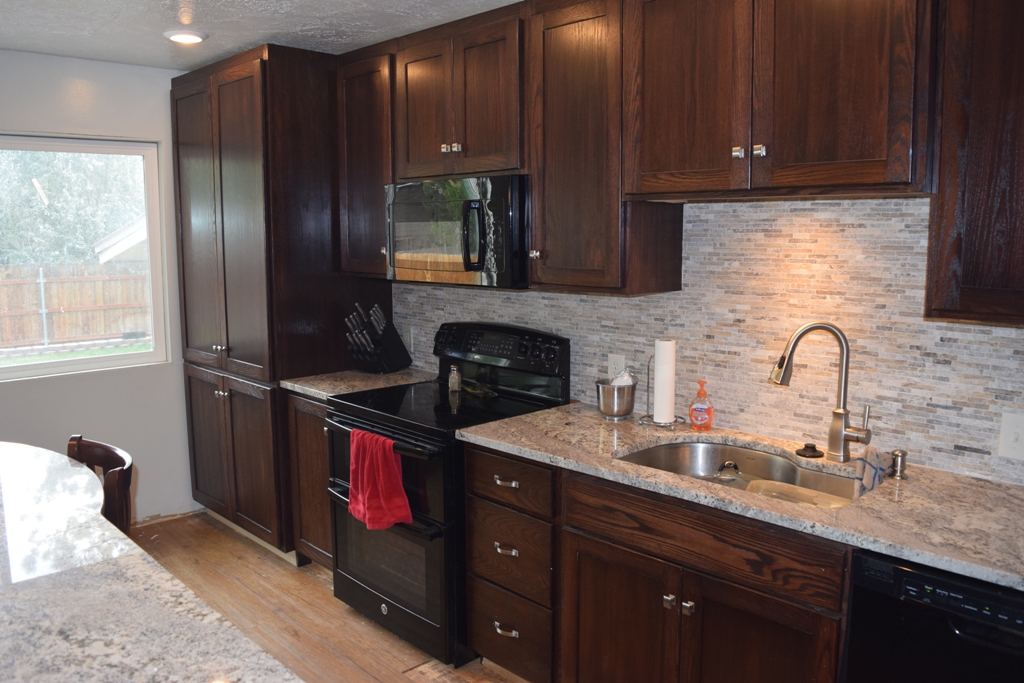

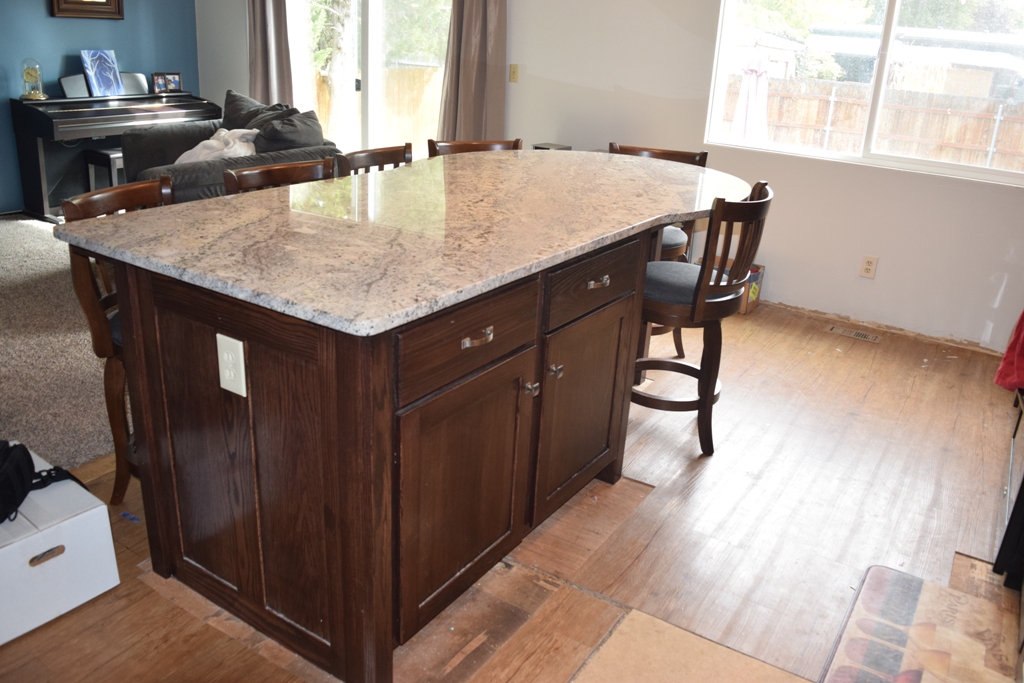

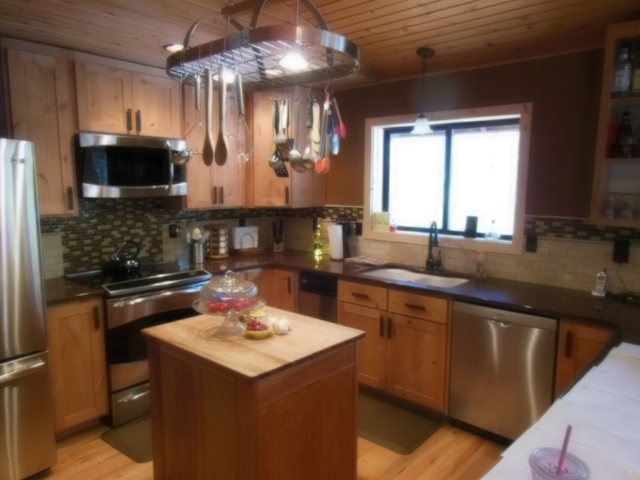

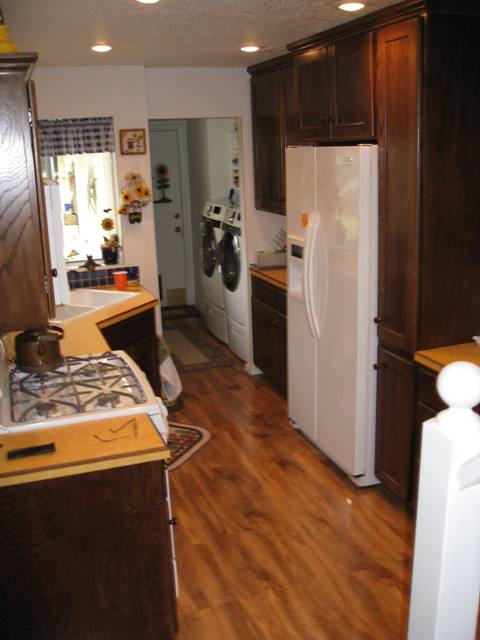

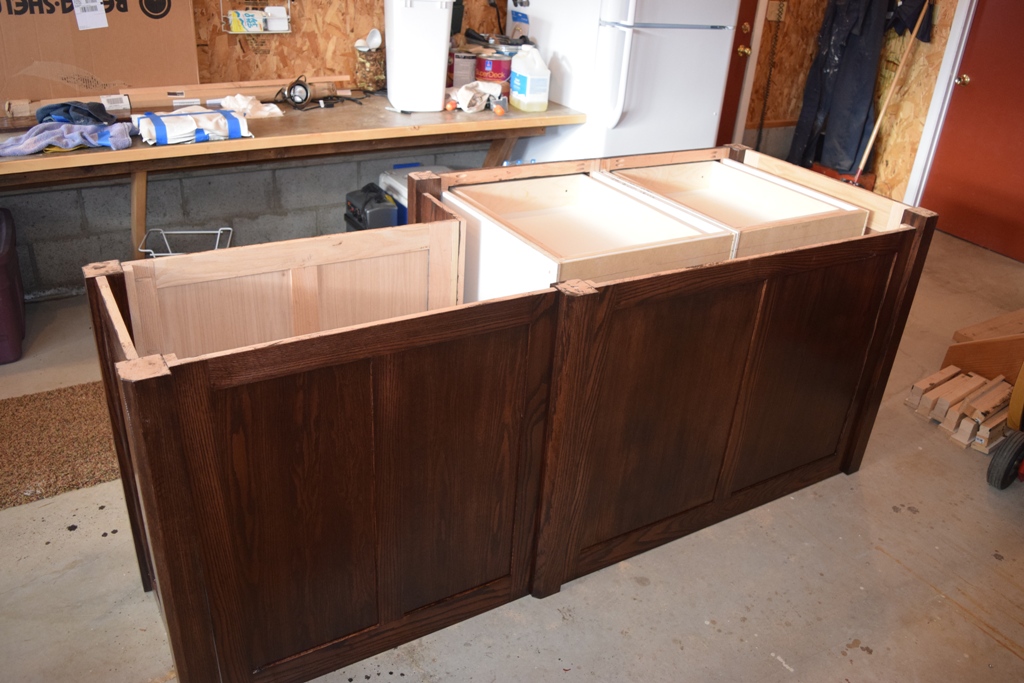

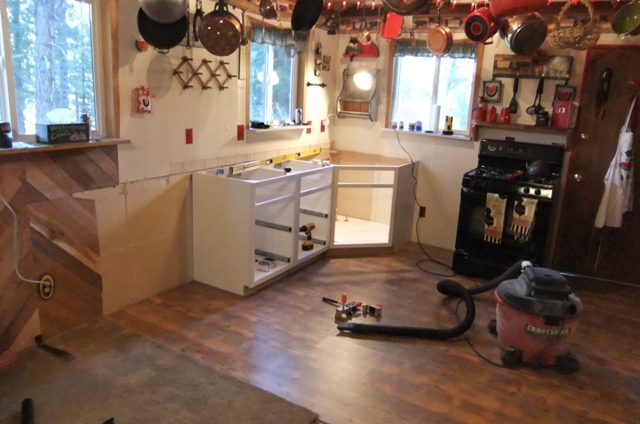

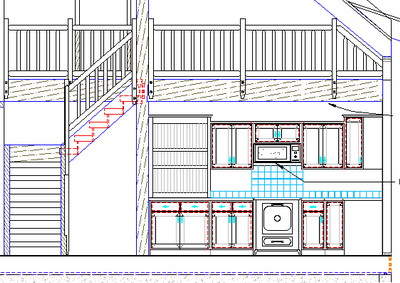

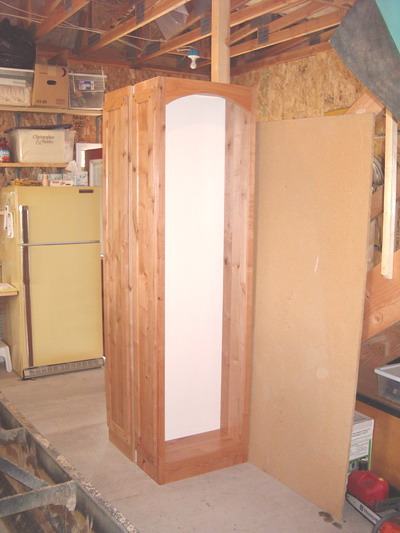

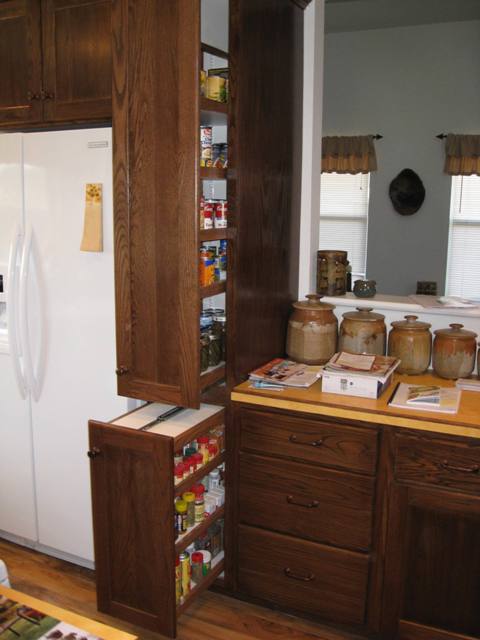

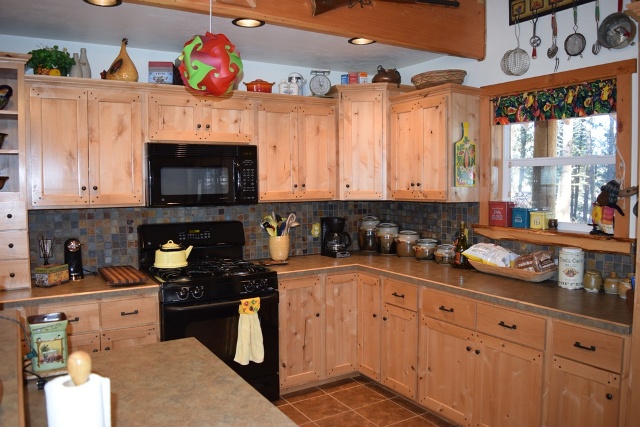

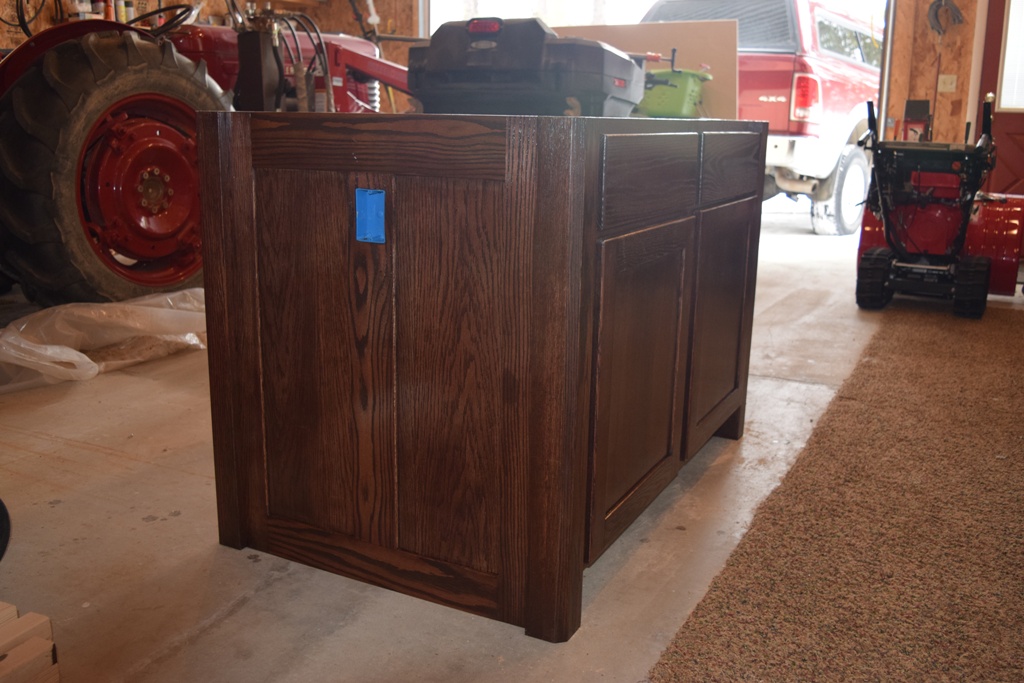

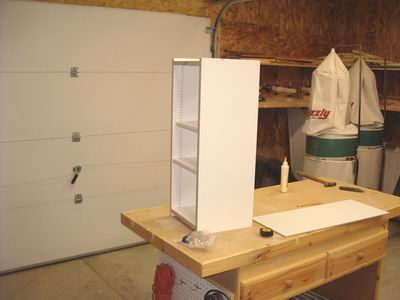

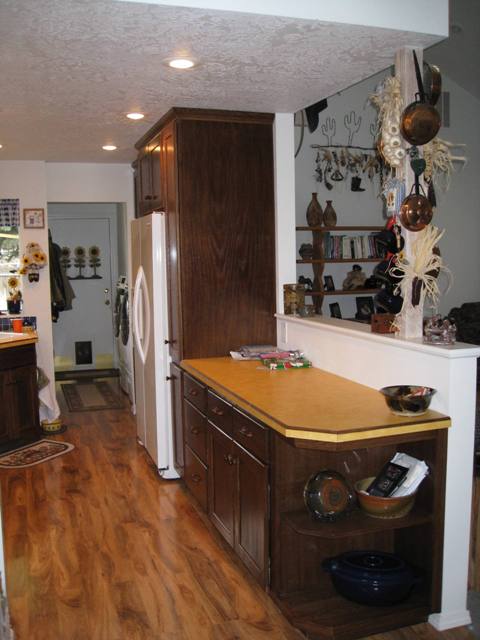

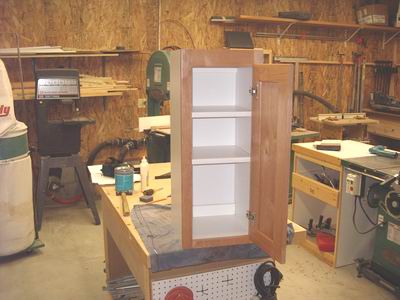

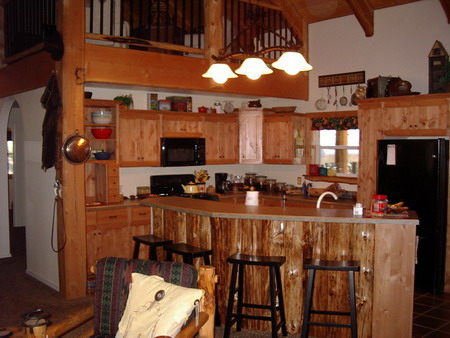

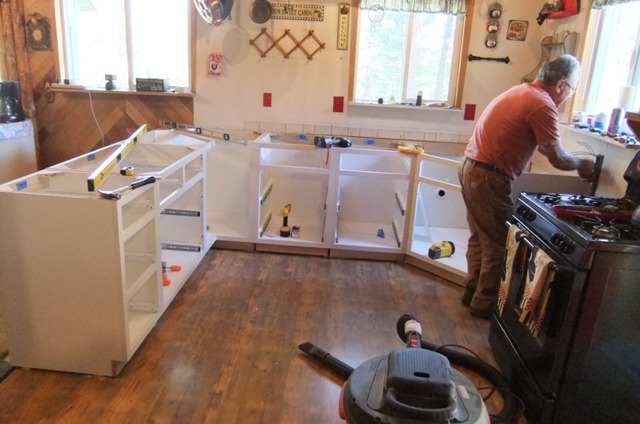

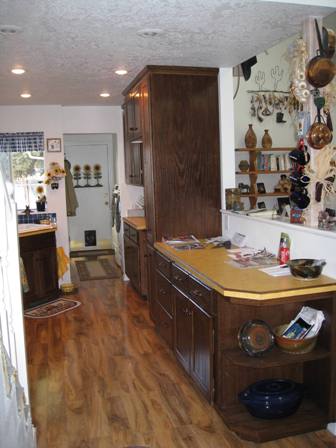

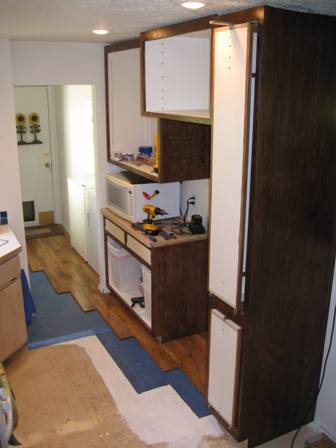

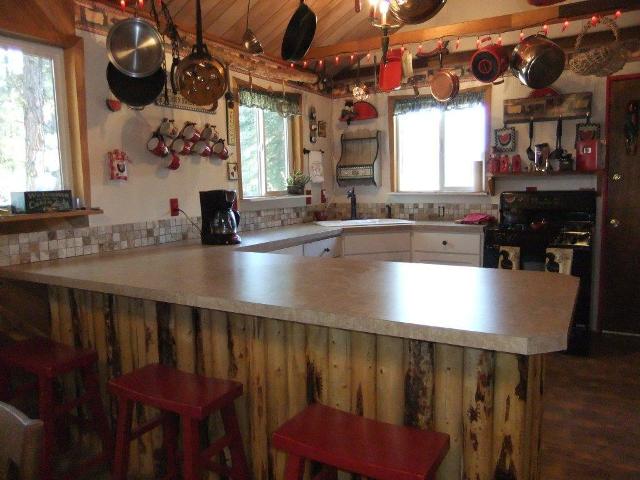

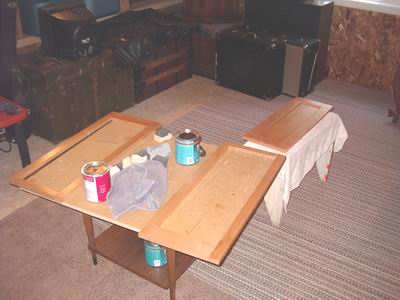

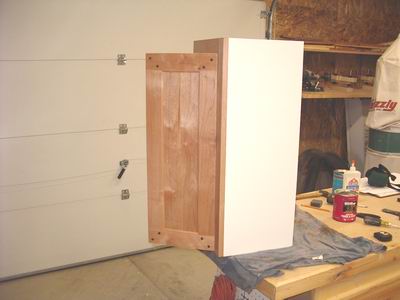

CAD drawing of the west wall of the kitchen under the loft. CAD drawing of the noth wall of the kitchen. Cabin kitchen and island counter finished June 2007. Perry started on the first kitchen cabinet. The frames were a trial run to finalize on the stain and finish. The knotty alter doors will be a different design than normal styles and rails Perry is starting to build the kitchen cabinets for the cabin. The carcass is melineen with white metal recessed shelf hangers The stiles and rails are going to be a different style cabinet. The pantry and entry way book case. Book case cabinet at kitchen entry door. The wall cabinets are complete.

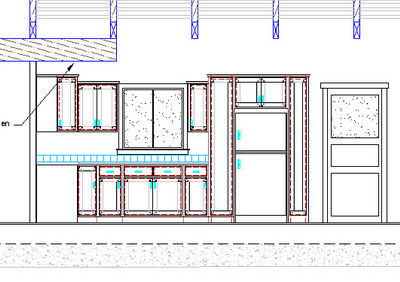

CAD drawing of the west wall of the kitchen under the loft.
